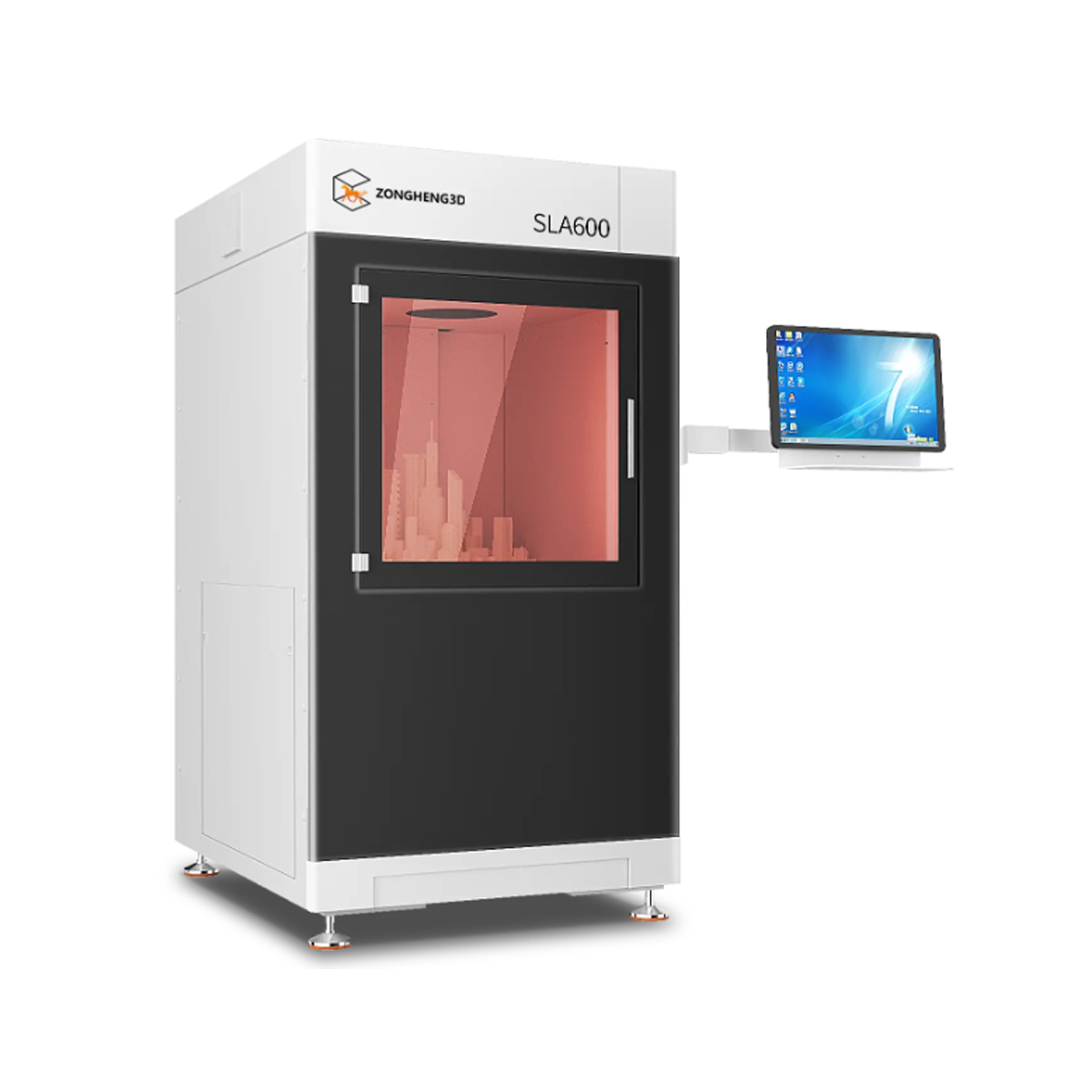

Zongheng 3D ZH-SLA600

Resins / SLA - DLP
Zongheng 3D
ZH-SLA600

The ZH-SLA600 is an industrial-grade SLA 3D printer engineered for the fabrication of medium-to-large models with ultra-high precision, rapid scanning speeds, and consistent surface quality. It is the ideal solution for advanced prototyping and intensive R&D activities.

Request a quote

Features

  • Industrial SLA technology for high-tier prototyping and pre-production cycles.
  • Elevated scanning speeds: up to 5000–6000 mm/s for high-efficiency output.
  • Ultra-high precision: accuracy up to 0.05 mm across the entire build area.
  • Ideal for pre-production molds and complex functional validation.
  • Superior surface finish and fine detail retention on medium-to-large parts.
  • Robust architecture designed for continuous 24/7 industrial operation.
  • Wide versatility across diverse manufacturing and design sectors.

Compatible Materials

  • Photosensitive resins (355–380 nm):
  • Standard Resins: for high-quality aesthetic and master models.
  • High-Resolution Resins: for intricate details and smooth finishes.
  • Engineering & Technical Resins: for durable functional testing.
  • Castable Resins: for precision industrial investment casting.

Technical Specifications

Technology
Stereolithography (SLA)
Wavelength
355 nm
Machine Dimensions
990 x 1300 x 1850 mm
Weight
860 Kg (excluding materials)
Laser Source
Solid-state UV Laser (3W Pulsed)
Spot Size
0.1-0.6 mm
Recoating System
Automatic Vacuum-Adhesion System
Layer Resolution
0.05-0.2 mm
Material Volume
180L (about 225 Kg)
Operating System
Win7 (32-bit)
Software
ZH6.0
Connectivity
Ethernet
Vertical Positioning Accuracy
±0.002 mm
Horizontal Positioning Accuracy
±0.001 mm
Max Model Weight
70 Kg
Power Supply
220V, 50HZ
Build Volume
600 x 600 x 400 mm
Recommended Scanning Speed
6000 mm/s
Recommended Laser Travel Speed
1200 mm/s
Installation Space Required
4 x 4 x 2,8 m

For pricing, lead times, or technical inquiries, please contact our team.
