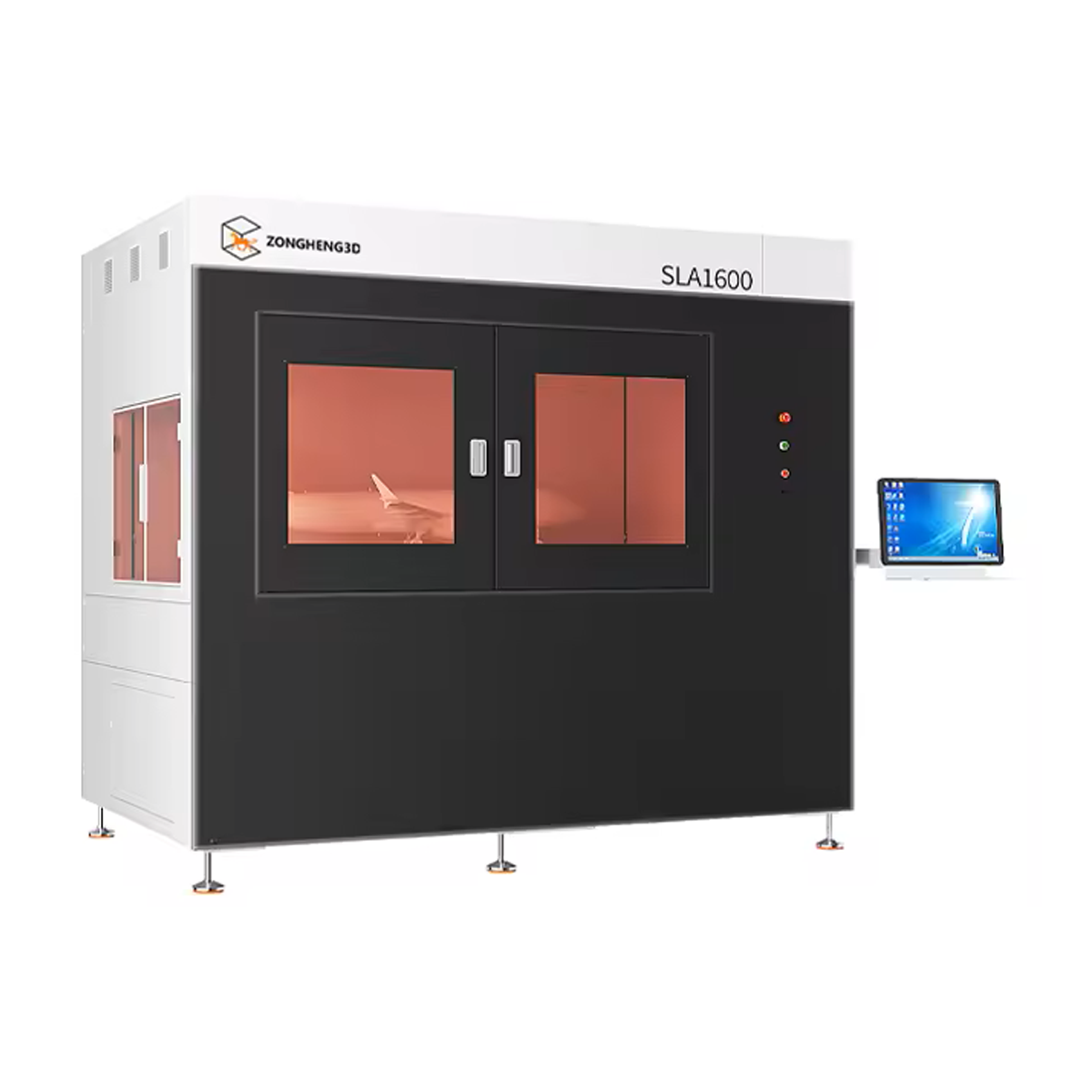

Zongheng 3D ZH-SLA1600

Resins / SLA - DLP
Zongheng 3D
ZH-SLA1600

The ZH-SLA1600 is a giant-format industrial SLA 3D printer, specifically engineered for ultra-large-scale production, advanced prototyping, and the pre-production of massive components.

This machine is built to deliver high speed, extreme precision, and industrial productivity even on the most voluminous models, offering the structural integrity needed for industrial batches and complex R&D projects.

Request a quote

Features

  • Giant-format Industrial SLA technology for oversized components.
  • Seamless Extra-Large Printing: massive build volume up to 1600 mm for monolithic parts.
  • Dual Laser System: synchronizes two laser sources to double the printing speed on large formats.
  • Variable Spot Size: dynamic laser focus for rapid infill and high-precision surface detailing.
  • Maximum Construction Speed: up to 420 g/h, optimized for high industrial throughput.
  • Industrial Validation: ideal for pre-production molds, advanced R&D, and structural functional testing.

Compatible Materials

  • Photosensitive resins (355–380 nm):
  • Standard Resins: for large-scale master models and aesthetic prototypes.
  • High-Resolution Resins: for intricate details on large surfaces.
  • Engineering & Technical Resins: for high-durability functional parts.
  • Castable Resins: for large-scale industrial investment casting.

Technical Specifications

Technology
Stereolithography (SLA)
Wavelength
355 nm
Machine Dimensions
2500 x 1570 x 2200 mm
Weight
2800 Kg (excluding materials)
Laser Source
Dual Solid-state UV Lasers (3W Pulsed)
Spot Size
0.1-0.6 mm
Recoating System
Automatic Vacuum-Adhesion System
Layer Resolution
0.05-0.2 mm
Material Volume
961L (about 1200 Kg)
Operating System
Win7 (32-bit)
Software
ZH6.0
Connectivity
Ethernet
Vertical Positioning Accuracy
±0.002 mm
Horizontal Positioning Accuracy
±0.001 mm
Max Model Weight
160 Kg
Power Supply
220V, 50HZ
Build Volume
1600 x 800 x 600 mm
Recommended Scanning Speed
6000 mm/s
Recommended Laser Travel Speed
1200 mm/s
Installation Space Required
4 x 4 x 3 m

For pricing, lead times, or technical inquiries, please contact our team.
