Zongheng 3D ZH-SLA1200

Resins / SLA - DLP
Zongheng 3D
ZH-SLA1200

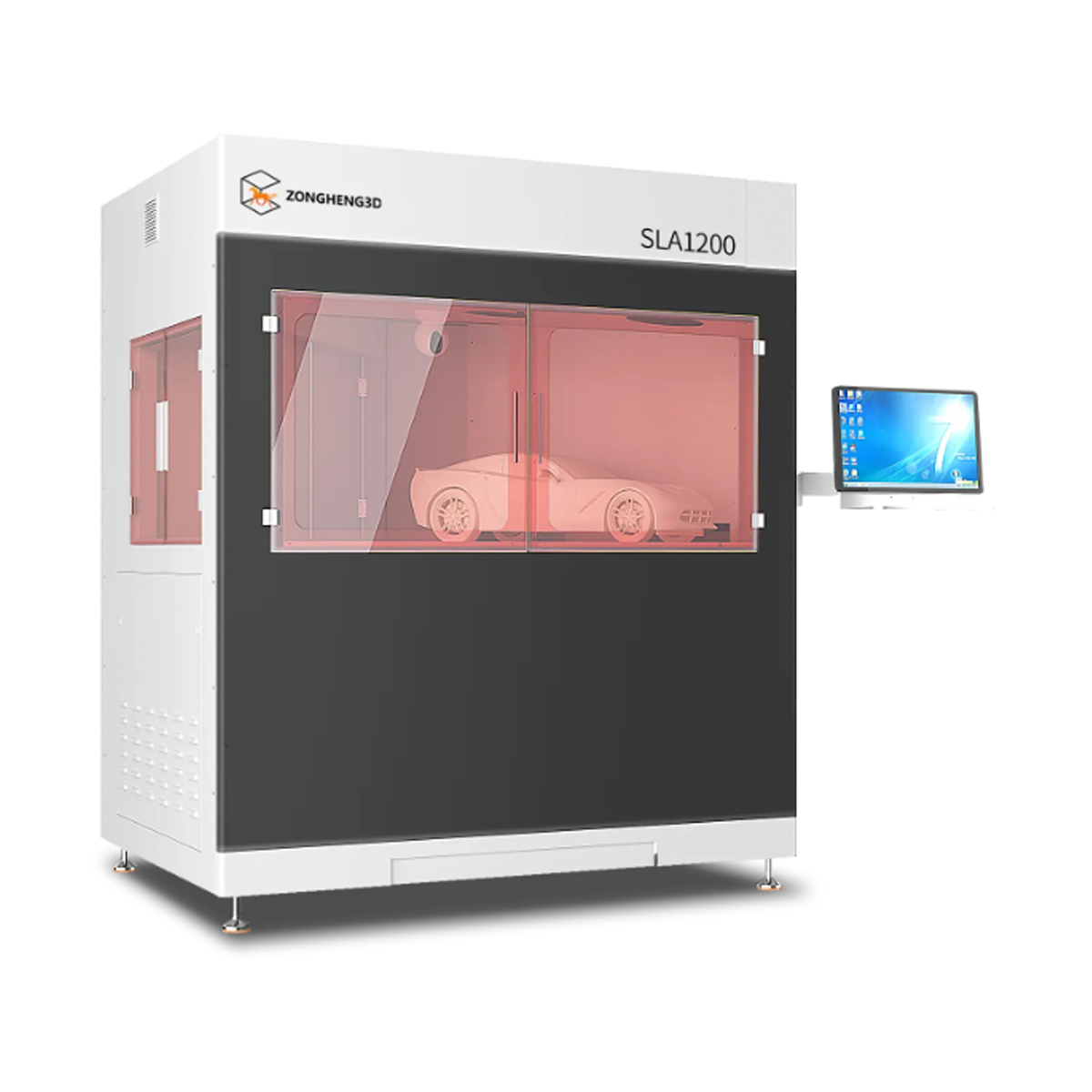

The ZH-SLA1200 is a large-format industrial SLA 3D printer, engineered for large-scale production, advanced prototyping, and pre-production of high-volume components.

This machine is designed to deliver high speed, precision, and productivity even on massive models, offering the capacity to manage industrial batches and complex R&D experimentation.

Request a quote

Features

  • Industrial SLA technology optimized for extra-large components.
  • Extra-Large Build Volume: maximum length up to 1200 mm for monolithic parts.
  • Dual Laser Printing: doubles the printing speed on large formats through synchronized laser paths.
  • Variable Spot Size: allows for a perfect balance between rapid prototyping and high-precision detailing.
  • Maximum Construction Speed: up to 420 g/h, ensuring industrial-grade throughput.
  • Ideal for pre-production molds, advanced R&D, and comprehensive functional testing.

Compatible Materials

  • Photosensitive resins (355–380 nm):
  • Standard Resins: for large aesthetic and master models.
  • High-Resolution Resins: for complex geometries with flawless finishes.
  • Engineering & Technical Resins: for high-durability functional validation.
  • Castable Resins: for industrial-scale investment casting patterns.

Technical Specifications

Technology
Stereolithography (SLA)
Wavelength
355 nm
Machine Dimensions
1800 x 1300 x 2300 mm
Weight
1500 Kg (excluding materials)
Laser Source
Dual Solid-state UV Lasers (3W Pulsed)
Spot Size
0.1-0.6 mm
Recoating System
Automatic Vacuum-Adhesion System
Layer Resolution
0.05-0.2 mm
Material Volume
448L (circa 560 Kg)
Operating System
Win7 (32-bit)
Software
ZH6.0
Connectivity
Ethernet
Vertical Positioning Accuracy
±0.002 mm
Horizontal Positioning Accuracy
±0.001 mm
Max Model Weight
100 Kg
Power Supply
220V, 50HZ
Build Volume
1200 x 600 x 500 mm
Recommended Scanning Speed
6000 mm/s
Recommended Laser Travel Speed
1200 mm/s
Installation Space Required
4 x 5 x 3 m

For pricing, lead times, or technical inquiries, please contact our team.
