Zongheng 3D ZH-SLA1000

Resins / SLA - DLP
Zongheng 3D
ZH-SLA1000

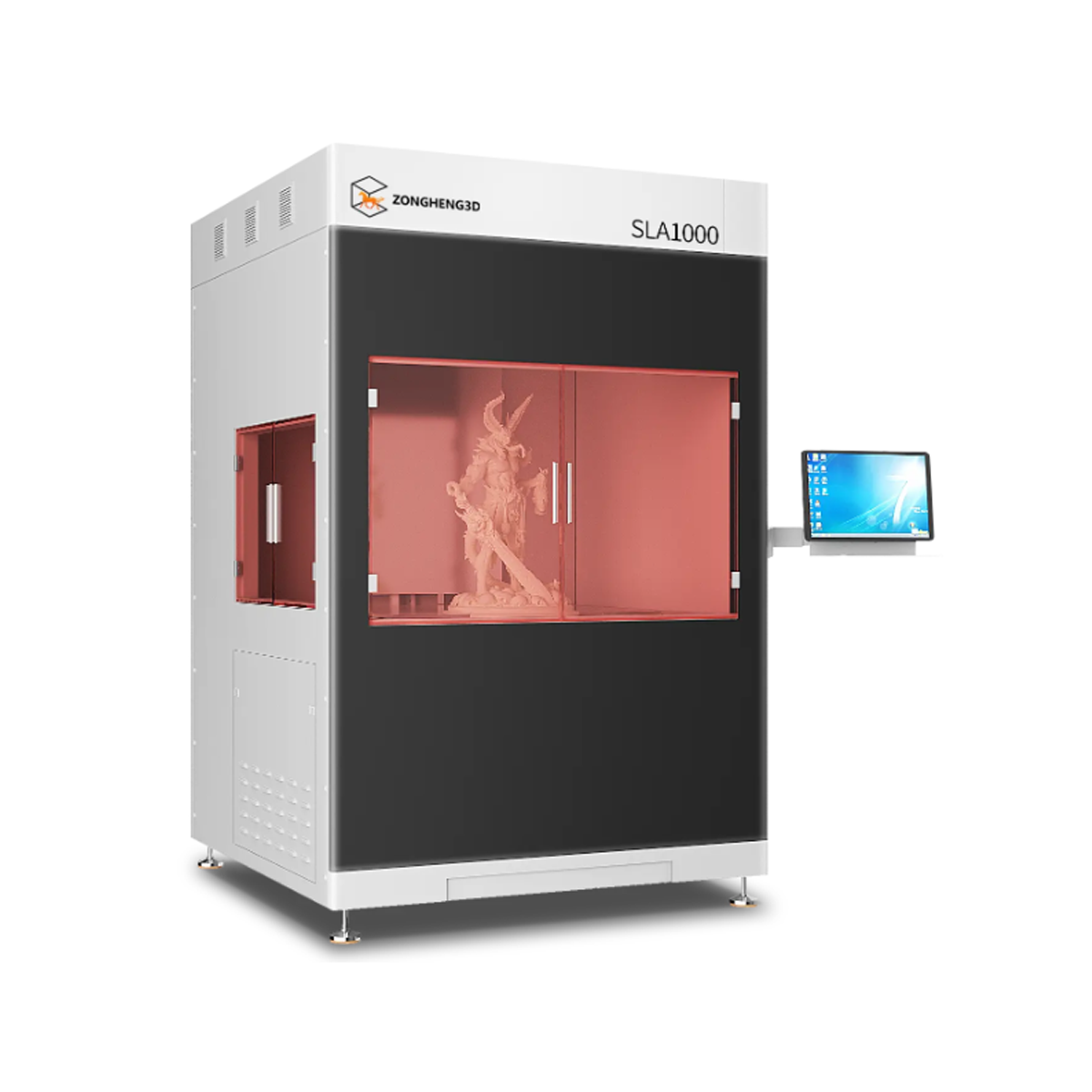

The ZH-SLA1000 is an industrial-grade SLA 3D printer engineered for the fabrication of medium-to-large scale models with extreme precision, high scanning speeds, and consistent surface quality. It is the premier solution for advanced prototyping, R&D, and pre-production cycles.

Request a quote

Features

  • Industrial SLA technology for high-tier prototyping and pre-production.
  • Elevated scanning speeds: up to 5000–6000 mm/s.
  • Ultra-high precision: accuracy up to 0.05 mm across large surfaces.
  • Ideal for pre-production molds and comprehensive functional validation.
  • Superior surface finish and fine detail retention on massive parts.
  • Robust architecture designed for continuous 24/7 industrial operation.
  • Wide versatility across diverse manufacturing sectors.

Compatible Materials

  • Photosensitive resins (355–380 nm):
  • Standard Resins: for large-scale aesthetic and master models.
  • High-Resolution Resins: for complex geometries requiring flawless finishes.
  • Engineering & Technical Resins: for durable functional testing.
  • Castable Resins: for high-fidelity industrial investment casting.

Technical Specifications

Technology
Stereolithography (SLA)
Wavelength
355 nm
Machine Dimensions
1600 x 1700 x 2500 mm
Weight
1800 Kg (excluding materials)
Laser Source
Solid-state UV Laser (3W Pulsed)
Spot Size
0.1-0.6 mm
Recoating System
Automatic Vacuum-Adhesion System
Layer Resolution
0.05-0.2 mm
Material Volume
860 kg
Operating System
Win7 (32-bit)
Software
ZH6.0
Connectivity
Ethernet
Vertical Positioning Accuracy
±0.002 mm
Horizontal Positioning Accuracy
±0.001 mm
Max Model Weight
100 Kg
Power Supply
220V, 50HZ
Build Volume
1000 x 1000 x 600 mm
Scanning Speed
6000 mm/s
Laser Travel Speed
1200 mm/s
Installation Space Required
4.5 x 4.5 x 3 m

For pricing, lead times, or technical inquiries, please contact our team.
